The First Step Of Designing A Septic System Is A Onsite Investigation And Soil/Perc Testing, We Meet With The Home Owner Or Builder, To Discuss The Job Site And Future Plans And Uses Of The Property As well As The Topography So We Can Avoid Seasonal Runoff Or Areas Prone To Potential Flooding and Saturation Issues As Well As Setbacks From Property Lines, Foundations, Lakes, Oceans, Rivers And Drainage Ditches. This Helps Determine The Best Place For A New Disposal/Septic Field Area.

​

After A Proposed Area Is Determined, We Begin Digging Holes To Determine The Sites Soil Conditions. We Are Looking To Determine The Depth, Type And Quality Of Soil We Are Dealing With So We Can Determine They Best Type Of System For The Site,  As All Sites Are Different. Next Multiple Perc Hole Are Dug And Filled With Water And Timed As They Drain. This Helps Determine A Hydraulic Loading Rate Of The Soil.

​

Now With This Information We Can Determine What Type Of System Is Needed And How Big It Needs To Be, Based Off The Number Of Bedrooms and Suites, This Is Called The Daily Design Flow. The Average Home Has A DDF Of 300-500 Gallons Per Day(Actual Flows Should Be Less Than 50% Of The DDF) For Example If A Daily Design Flow Is 500GPD, We Need 3 Days Of Retention For The Septic Tank, Meaning A 1500 Gallon Tank Is Needed. Now To Determine The Size Of The Pump Chamber, For This We Need 1 Day Of Retention So A 500 Gallon Pump Tank Would Be Needed.

​

Different Types Of Systems, These Are referred To As Type 1,2,3. Type 1 Being A Septic Tank Pump Chamber And Disposal Field. Type 2 Being A Septic Tank, Treatment Plant, Pump Chamber And A Disposal Field. Type 3 Systems Are Very Similar To Type 2 But Go 1 Step Further Usually Involving UV Lights For Further Disinfection. Type 1,2 Systems Are Designed By ROWPS. Type 3 Systems Are Needed When Critical Setbacks Can't Be Met And Are Usually Designed With And Engineer.

​

For New Home Construction And Home Additions The Municipality With Require A Septic System Design To Be Submitted To VIHA To Obtain A Building Permit For You To Proceed With Construction.



Treatment Plants Are Good Option When A Type 1 Disposal Field Design Doesn't Fit In The Proposed Field Area Due To Set Backs Or Other Factors Like A Small Building Lot. Now With A Type 2 Treatment Plant We Can Reduce The Size Of The Field By 50% Making It Work On The Lot. Treatment Plants Are Common On Small Lots And Sites With High Water Tables And Homes With Big Design Flows.

​

Gravity VS Pumps. The Main Factor In The Switch From Gravity To Pressure Systems Is Equal Distribution. Un-like Gravity, Equal Distribution Is Achieved Every Time The Pump Turns On, This Spreading Out Of The Effluent Is The Best Way To Maximize The Life Span Of A System, Preventing The Majority Of Root Intrusion Problems That Plague Gravity Systems And Lead To Premature Failure. Also The Chances Of Hydraulically Over-Loading The Soil Which Alters And Damages The Soil Shortening The Life Span Of A System And Its Ability To Drain Effluent Efficiently Is Reduced With A Pump System. These Are Just Some Of The Many Reasons Gravity Systems Have Become A Thing Of The Past.

​

Power-Outages, All Pump Systems Are Designed With Power Outages In Mind. We Set The Level In The Pump Chamber Low To Allow For This. The Septic Tank Will Also Have Overflow Capacity. The Over Flow Capacity On Most Systems Is In The Hundreds Of Gallons. The Other Thing To Consider Is That Only So Much Water Can Be Used During An Outage As There Is No Power To The Home.

​

​

​

​

DJ'S Mini Excavating Has Been Installing Systems For Over 30 Years , We Have Completed Thousands Of Septic Systems In Greater Victoria. Currently There Are Between 26 And 27 Thousand Systems In The Capitol Region With 400-600 New Systems Installed Every Year, Though There Are Homes Connected To New Sewer Systems. The Number Of Septic's Seems To Slowly Climb Or Maintain Itself.

​

We Are Known To Take On The Toughest Of Septic Jobs In Our Region That Others Walk Away From. We Are Proud To Offer Our Services At Competitive And Fair Rates. At DJ'S We Install   40-50 New Systems Every Year, We Install Septic Systems For New Construction Homes, Addition's And Upgrades To Homes As Well As Repairs And Replacements For Existing Homes And Businesses.

​

If Your A Builder Or Home Owner Looking For A Professional Septic Contractor Look No Further, You Can Trust In Our Team To Exceed Your Expectations. We Look Forward To Hearing From You!

​

 Email:  Djsminiexcavating@gmail.com     Office # 250 478 1403

​

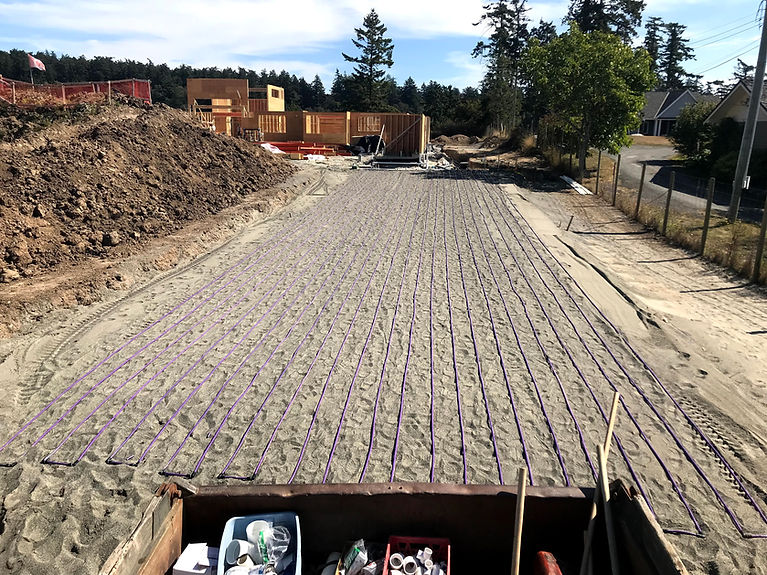

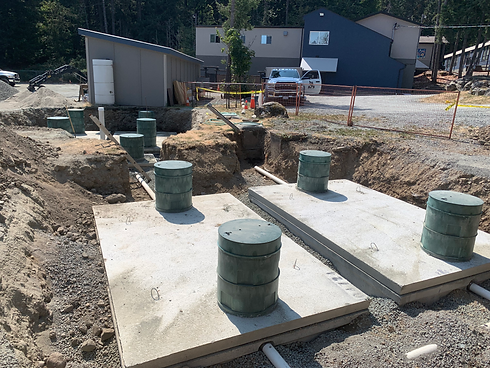

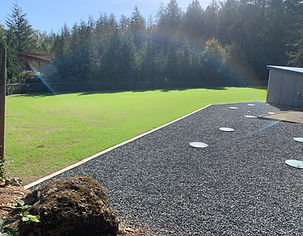

See Some Examples Of Our Work Below Or Check Out Our Gallery To See More
